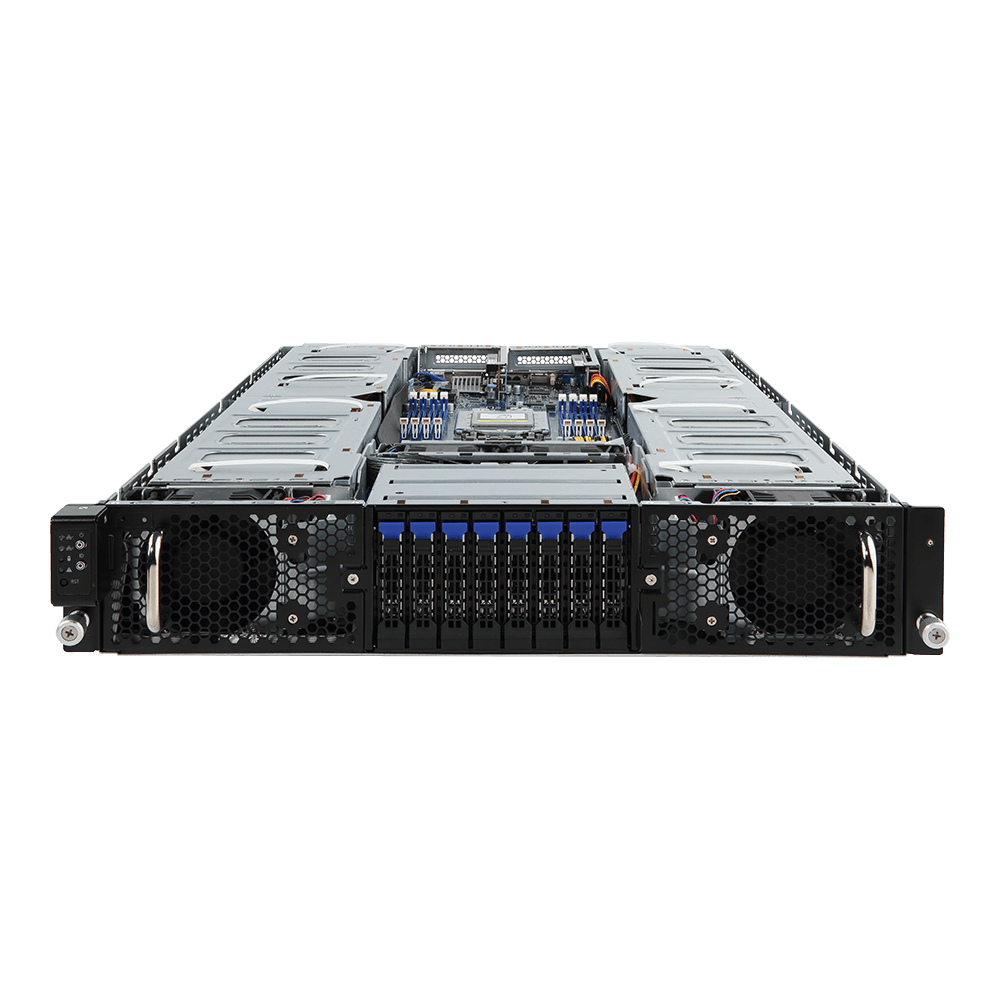

G291-Z20 (rev. A00) rev. 100
Supports up to 8 x double slot GPU cards AMD EPYC™ 7002 and 7001 series processor family 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs

产品特性

AMD EPYC™ 7002 Series Processor (Rome)


The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.



  • Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption

  • Up to 64 core per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture

  • Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0

  • Embedded security protection to help defend your CPU, applications, and data








 Higher Memory Speed


AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

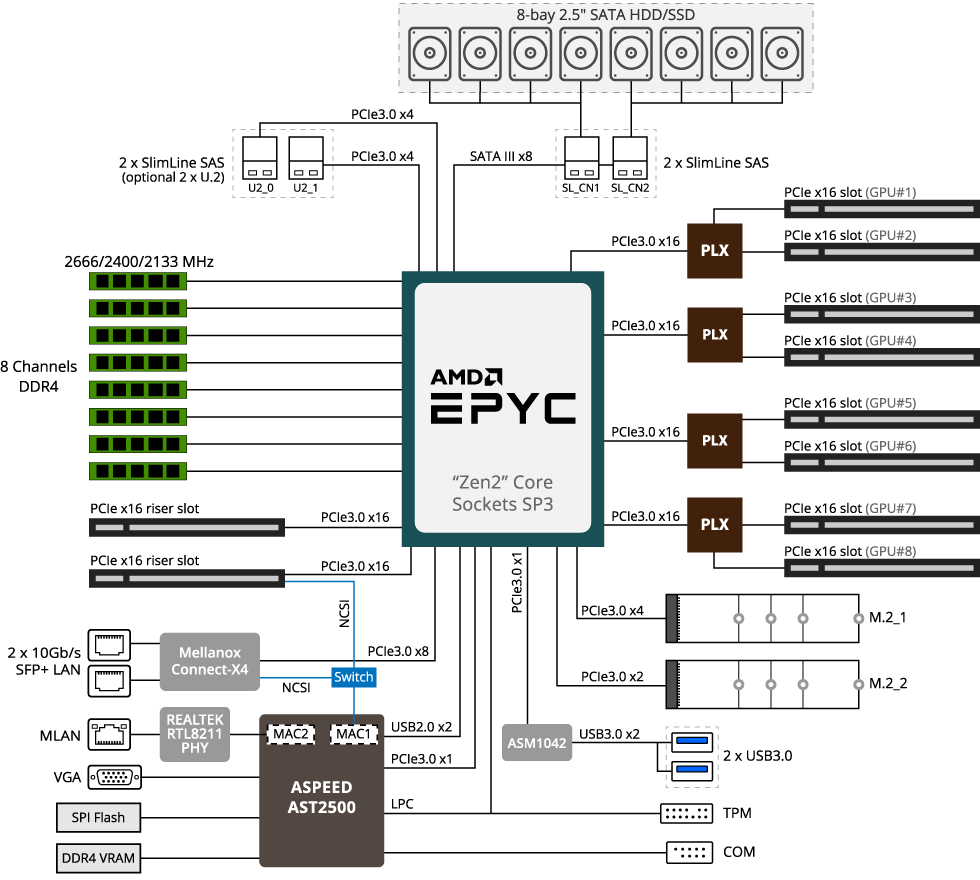

G291-Z20 System Block Diagram










G291-Z20 Product Overview












High Density HPC





Supports 8 x Computing Cards
Able to support up to 8 double slot GPGPU or co-processor cards, the G291 enables world-leading HPC within a 2U chassis. The G291 is ideal for HPC applications such as real time analytics, programs in scientific simulation and modeling, engineering, visualization & rendering, data mining, and much more.








AMD Radeon Instinct™ MI50 Support



This GIGABYTE server features support for AMD’s Radeon Instinct™ MI50 compute card, designed to deliver high levels of performance for deep learning, high performance computing (HPC), cloud computing, and rendering systems.



  • Based on “Vega 7nm” Technology with 60 supercharged Compute Units (3840 Stream Processors)

  • Up to 53 TOPS INT8 Performance for Inference Workloads

  • Up to 26.5 TFLOPS FP16 and 13.3 TFLOPS FP32 Performance for Training Workloads

  • Up to 6.6 TFLOPS Double Precision for HPC

  • 16 GB or 32 GB Ultra-fast HBM2 ECC Memory with up to 1 TB/s Memory Bandwidth

  • The World’s First PCIe® Gen 4 x16 Capable GPU

  • AMD Infinity Fabric™ Link – up to 184 GB/s peer-to-peer GPU communication speeds

  • ROCm Open Ecosystem








NVIDIA® V100 Tensor Core GPU Support



GIGABYTE’s AMD EPYC server systems and motherboards are fully compatible and qualified to use with NVIDIA® V100 Tensor Core GPUs, an advanced data center GPU built to accelerate AI, HPC, and graphics. Powered by NVIDIA Volta™ architecture and with 640 Tensor Cores, the NVIDIA V100 has broken the 100 teraflops (TFLOPS) barrier of deep learning performance — enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.

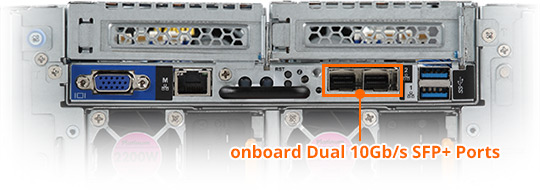

High-Speed Networking



GIGABYTE offers 10Gb across dual ports on-board, ensuring that users can get the most out of their system and are well equipped for today’s traffic demands. The server’s network performance is boosted with full-line rate throughput and CPU overhead is reduced, leaving the EPYC to focus on the real compute tasks.














Dense, High Speed Storage Support

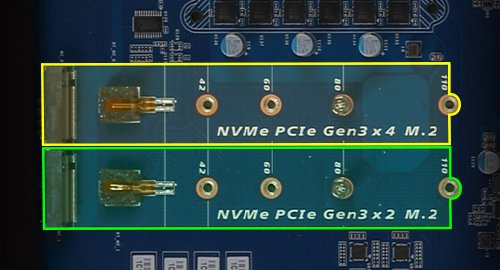

Onboard M.2
GIGABYTE AMD EPYC™ platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks. Delivering up to 32 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA devices.









Data Security



TPM 2.0 Module
GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).












Carefully Selected Components


GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.








Design Features for Easy Maintenance



GIGABYTE’s AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!





Tool-less Rail Kits


Rail kits attach to the side of the server chassis via clipping mechanism.












Efficient, Reliable Power Supply



GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.












Intelligent Power Management Features



SCMP (Smart Crises Management / Protection)
SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.





GIGABYTE Server Management (GSM)






GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:



  • GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple

    GIGABYTE servers via each server node’s BMC.

  • GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.

  • GSM Agent*, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
    *GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.

  • GSM Mobile, a remote server management mobile APP, available for both Android and iOS.

  • GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.









Dynamic Fan Speed Control



GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements.

* Enabled on selected models & performed through BMC console management GUI







Environmental Compliance


GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).





Red Hat Certified Hardware



This server product has been officially certified by Red Hat as compatible with Red Hat Enterprise Linux / Red Hat OpenStack Platform for Compute.



VMware Technology Alliance Partner

Being a member of VMware's Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.













技术规格

产品型号 G291-Z20
CPU AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Fully support 280W

Compatible with AMD EPYC™ 7001 series processor family
主板型号 MZ21-G20
主板芯片组 System on Chip
硬盘 8‎ x 2.5" hot-swappable HDD/SSD bays
SAS card is required for SAS devices support

Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
SATA接口 Supported
显卡 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
内存 8‎ x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz
网卡 2‎ x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4 Lx)
电源
2‎ x 2200W redundant PSUs
80 PLUS Platinum

风扇数量 8‎ x 80x80x38mm (15000rpm)
IPMI 1 x 10/100/1000 management LAN
PCI-E 扩展槽 8‎ x PCIe x16 slots (Gen3 x16 bus) for GPUs
2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2
- Supports NGFF-2242/2260/2280/22110 cards

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
扩展/扩展槽

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2
- Supports NGFF-2242/2260/2280/22110 cards

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
背板 I/O 接口 2‎ x USB 3.0
1 x VGA
2 x SFP+
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
SAS card is required for SAS devices support
操作系统支持 For AMD EPYC™ 7002 series processor family

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later

Citrix Hypervisor 8.1.0 or later

For AMD EPYC™ 7001 series processor family

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
系统运行温度 10°C to 35°C
系统非运行温度 -40°C to 60°C
尺寸规格 2‎U
448 x 87.5 x 800
重量
Net Weight: 29.5 kg
Gross Weight: 34.7 kg
